22-11-2024, 04:45 PM
Hey All.
This weeks update
Firstly, I've renamed this thread to remove 'Classic-Plus' from it. As mentioned in an earlier post in the thread, the 'Classic-Plus' and '256TC-Plus'
names for the 2 models will be changing for release. Neither of them truly reflect the new features and enhancements in the product.
Not a lot has gone on this week, except from working on the new revision of the FPGA board.
I've now added the HDMI transmitter part & I2S sound -> line output DAC. Also, instead of
the 2 static rams of the previous version, there is now a Flash rom & a 32Mbyte SDRAM.
Routing of the boards' updates is going well, with a little bit left to do. I'm aiming to have the
new FPGA board design files sent off for manufacture by the end of next week.

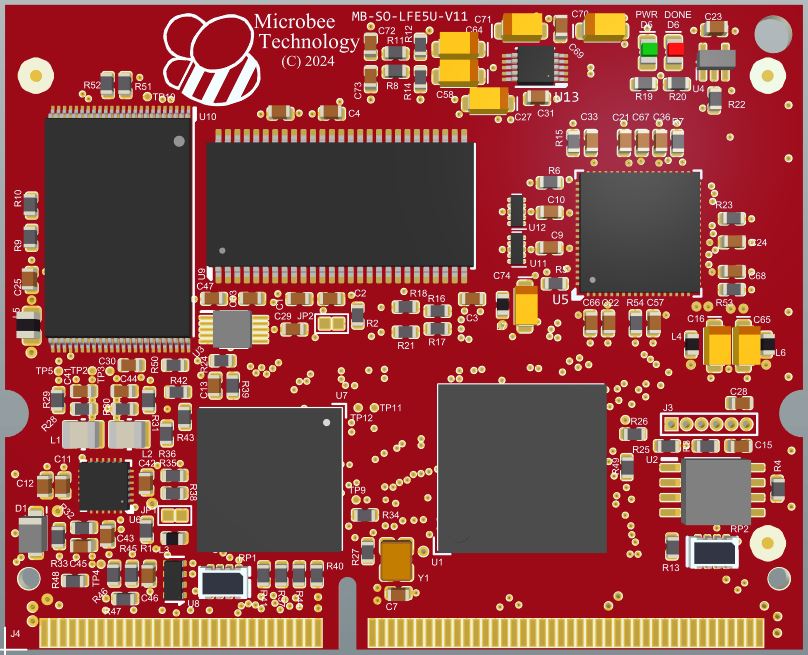

Here's what it looks like :
