These were found at https://forums.bannister.org/ in the MAME forum and thanks to Exidyboy for pointing them out. These were supplied with the intention of getting MAME to emulate the Labtam 3000 system that uses 8086 & Z80 cpus, 6845 video and WD2797 disk controller.

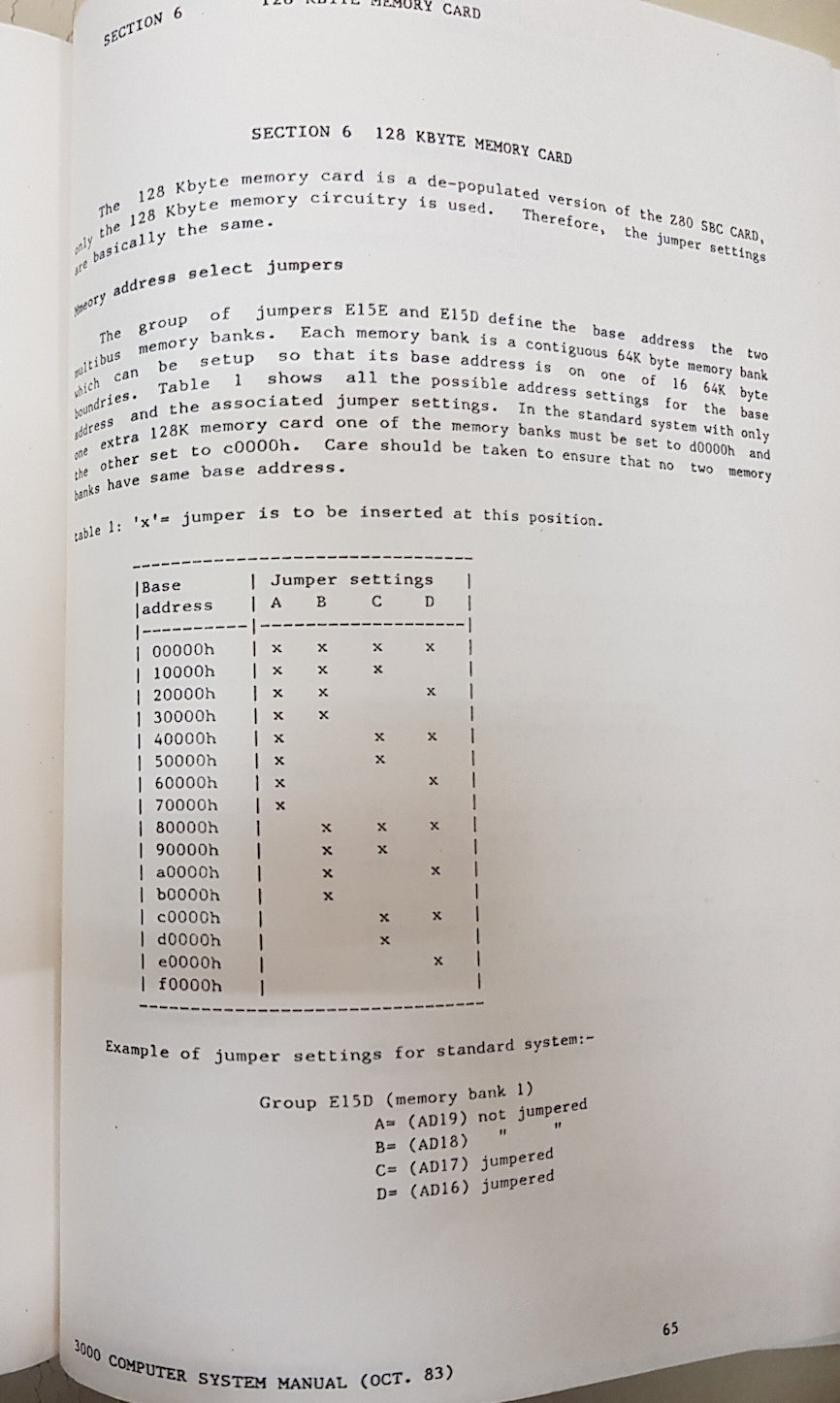

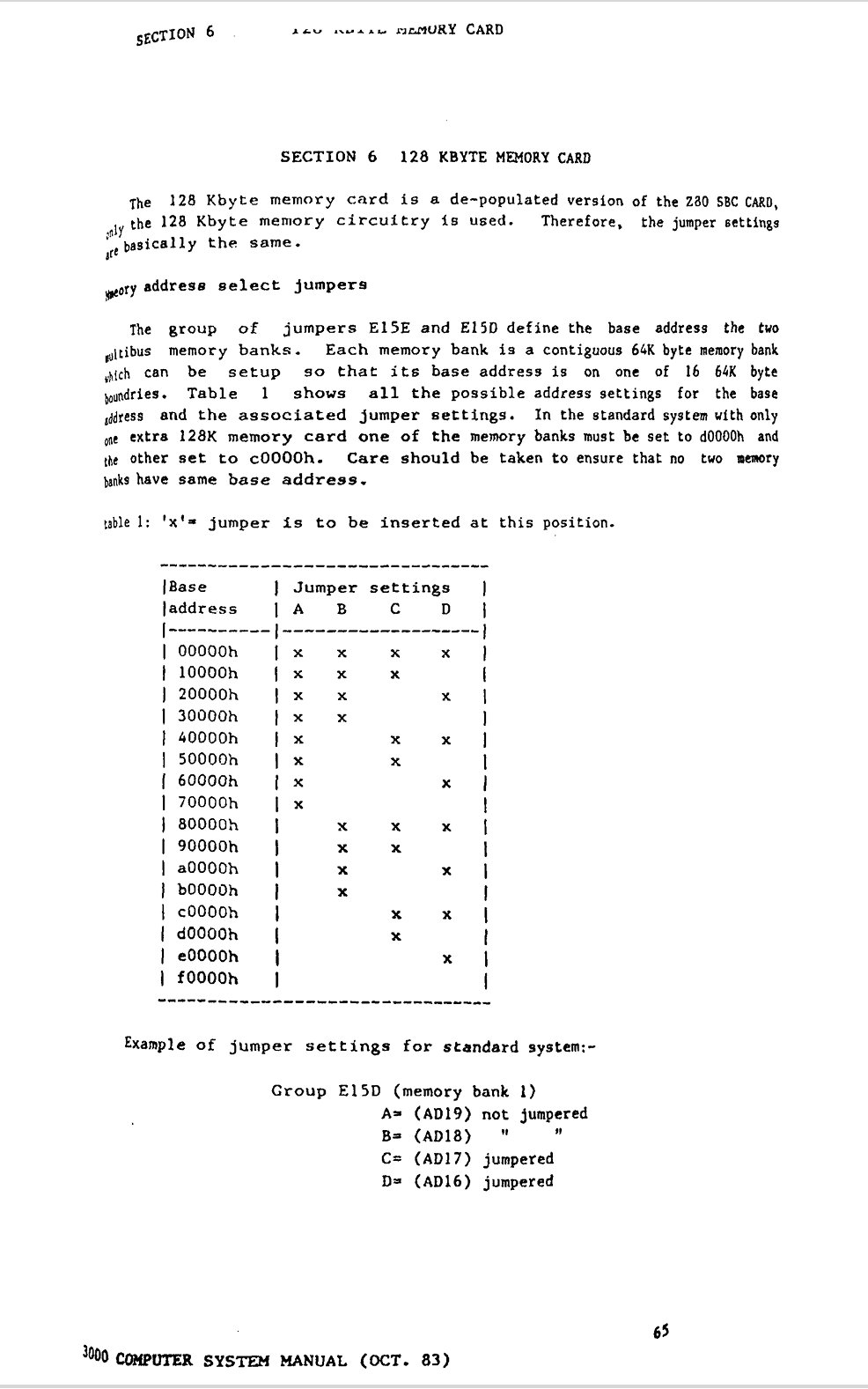

The manual originally consisted of photos of the open manual 2 pages at a time taken from different angles and distances, was a mess really. Pages were separated to single pages, de-skewed and perspective corrected on many pages. Then by using some filters they were able to re-straighten the text lines to a great degree . End result is not perfect but now substantially easier to read. This is one of the original pages and the best I could do to fix it.
The roms are untested and presented here as is. Pictures of the motherboards/cards are also included. Also thanks to vivid for providing a pic the Labtam XEngine2 motherboard.
So in the Vintage Repository in the Labtam folder we placed
labtam_3000_system_manual.pdf
labtam_3000_roms <-- 14 roms included
The manual originally consisted of photos of the open manual 2 pages at a time taken from different angles and distances, was a mess really. Pages were separated to single pages, de-skewed and perspective corrected on many pages. Then by using some filters they were able to re-straighten the text lines to a great degree . End result is not perfect but now substantially easier to read. This is one of the original pages and the best I could do to fix it.
The roms are untested and presented here as is. Pictures of the motherboards/cards are also included. Also thanks to vivid for providing a pic the Labtam XEngine2 motherboard.
So in the Vintage Repository in the Labtam folder we placed
labtam_3000_system_manual.pdf
labtam_3000_roms <-- 14 roms included
---------------------------
